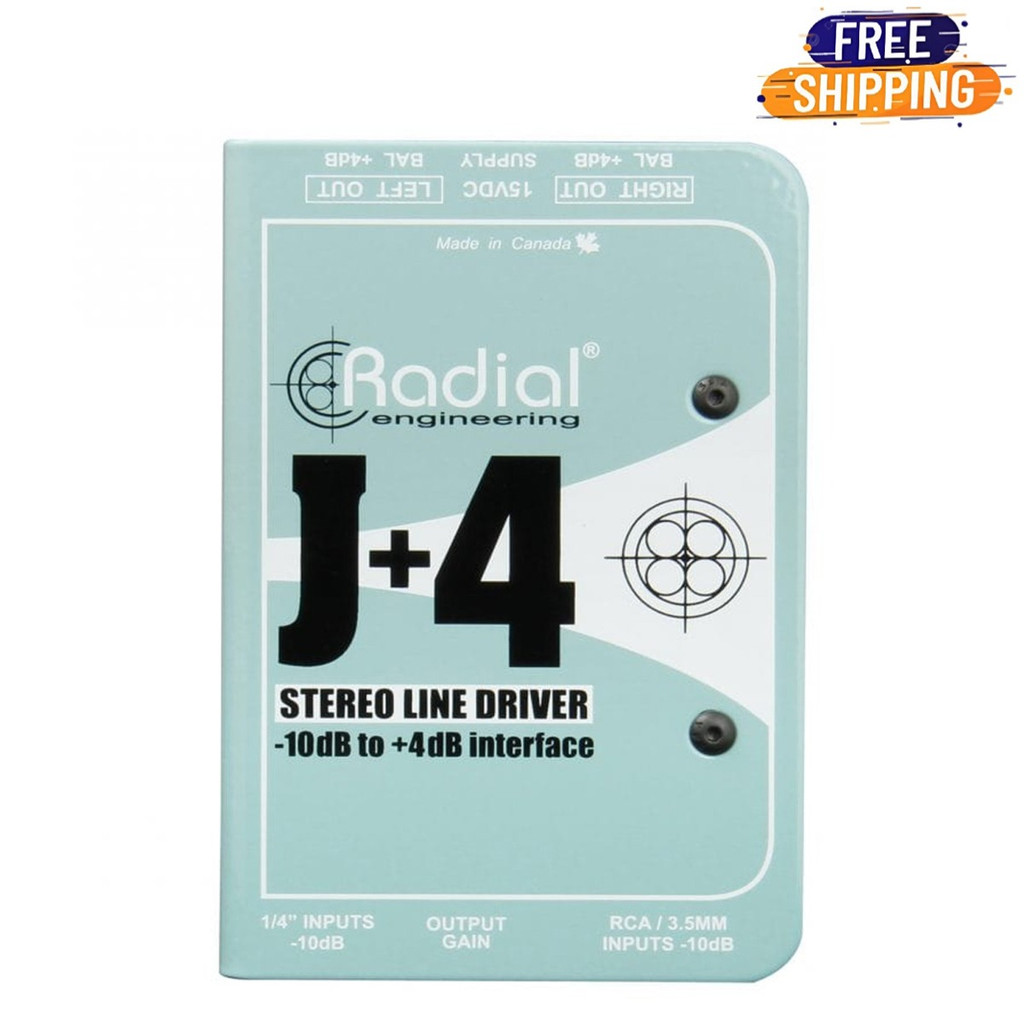

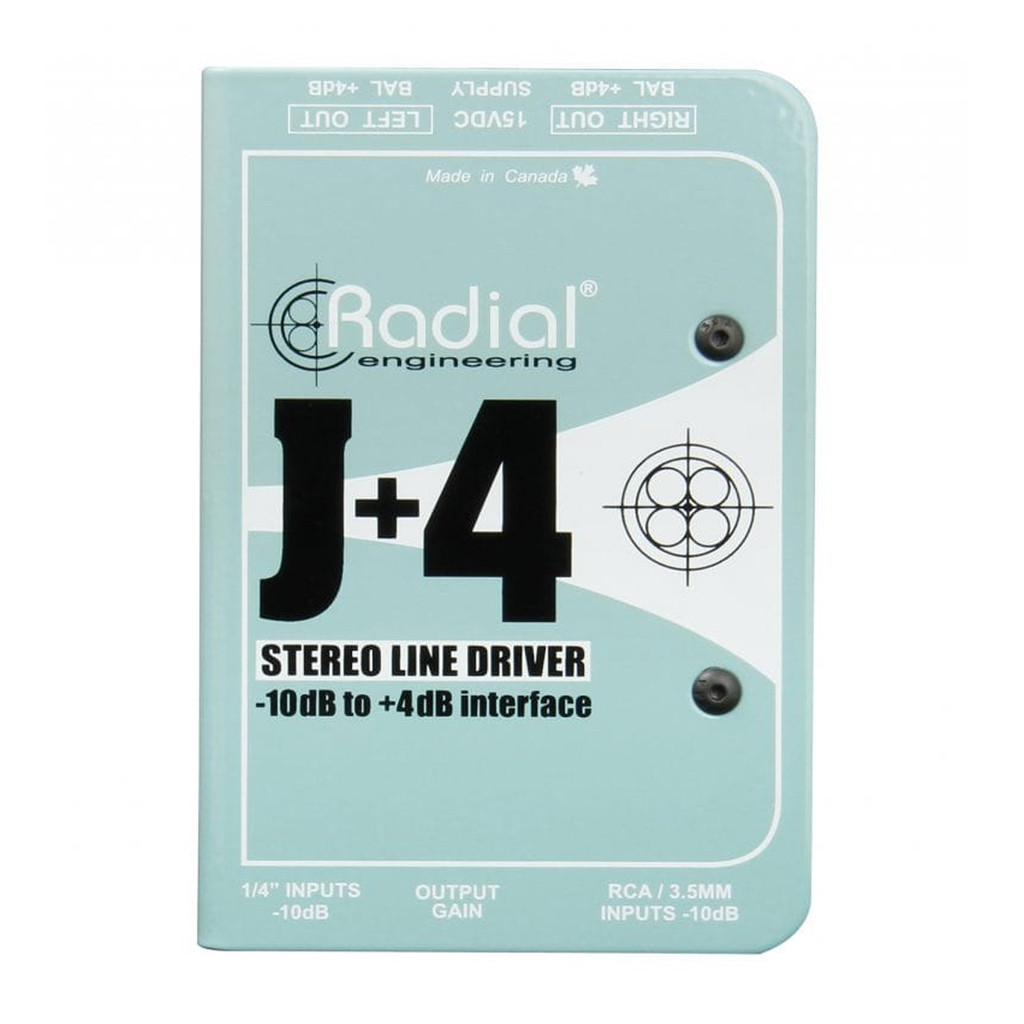

Radial Engineering J+4 Stereo Line Driver -10dB to +4dB Interface

The Radial J+4 Stereo Line driver lets you safely connect a -10dB player to +4dB mixer, eliminates noise, and cleans up playback with high-pass/low-cut filter. The Radial Engineering J+4 Stereo Line Driver accepts consumer level -10dB unbalanced high impedance signals and converts them to +4dB balanced low impedance signals. If your needs involve pro audio, whether in broadcast, recording studios, or live touring, you'll find the Line Driver box invaluable. Radial paid careful attention to noise elimination by combining the advantages of active signal buffering with transformer isolation. The J+4 delivers better than 95dB signal-to-noise.

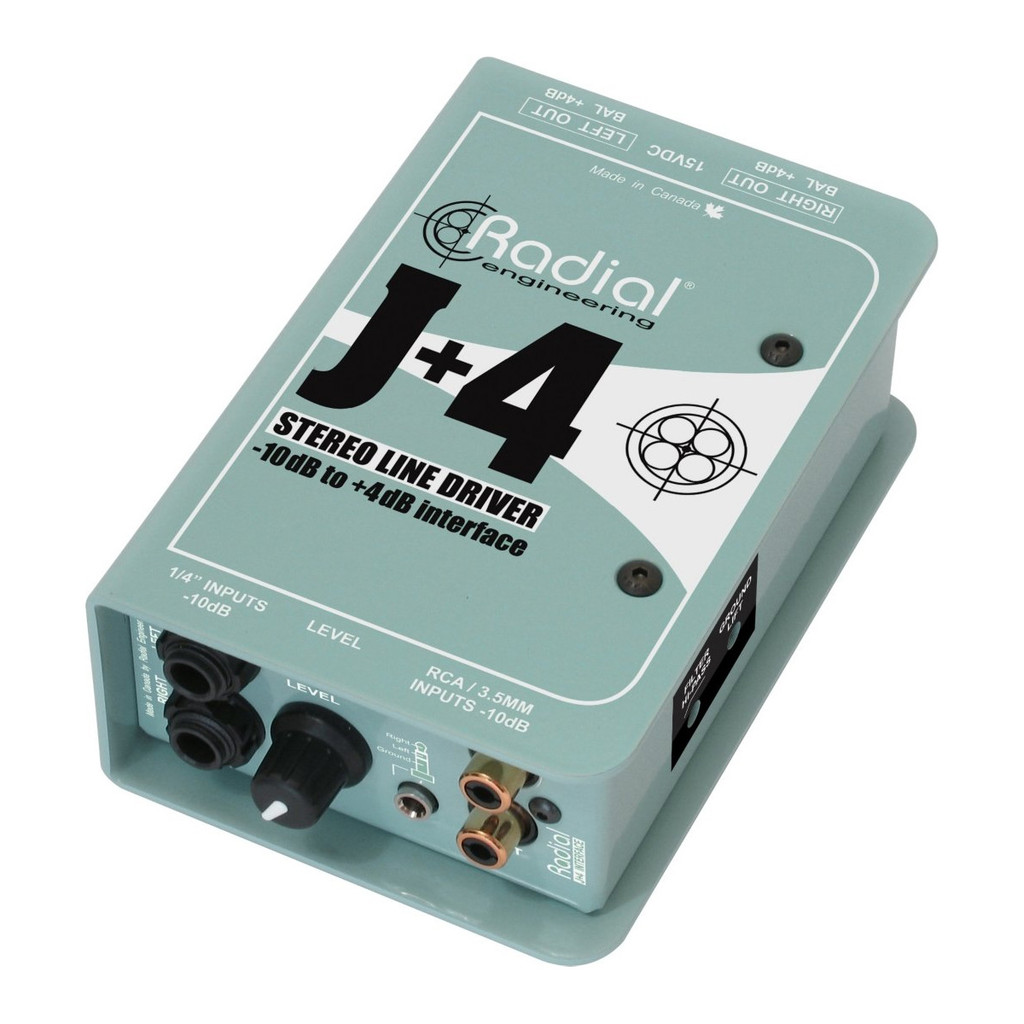

It also keeps hum and buzz caused by ground loops and spurious clocking noise from polluting the signal path. For reliability and ease-of-operation, Radial kept controls on the J+4 to a minimum. Input connectors include a stacked set of 1/4" jacks for DJ mixers or keyboards, RCA's for CD players and a mini 3.5mm for I-pods. High Pass Filter The Radial stereo J+4 is equipped with a handy high-pass filter that is used to cut low frequencies below 100Hz.

This provides several important benefits. First and foremost, when playing back audio tracks through a PA system, excessive bottom end can produce low frequency resonance which in turn can cause runaway feedback. It is also important to note that bass frequencies contain significantly more energy than higher frequencies. Reducing bass content can dramatically increase your system's dynamic range. Finally, by reducing unneeded low frequencies, it really helps clean up the mix.

Built tough As with all Radial products, the Radial J+4 is built tough to handle the extreme rigors of professional touring. A unique 14-gauge steel I-beam inner frame ensures the sensitive PC board will not be subjected to outside stress which could potentially cause solder joints to fail.
